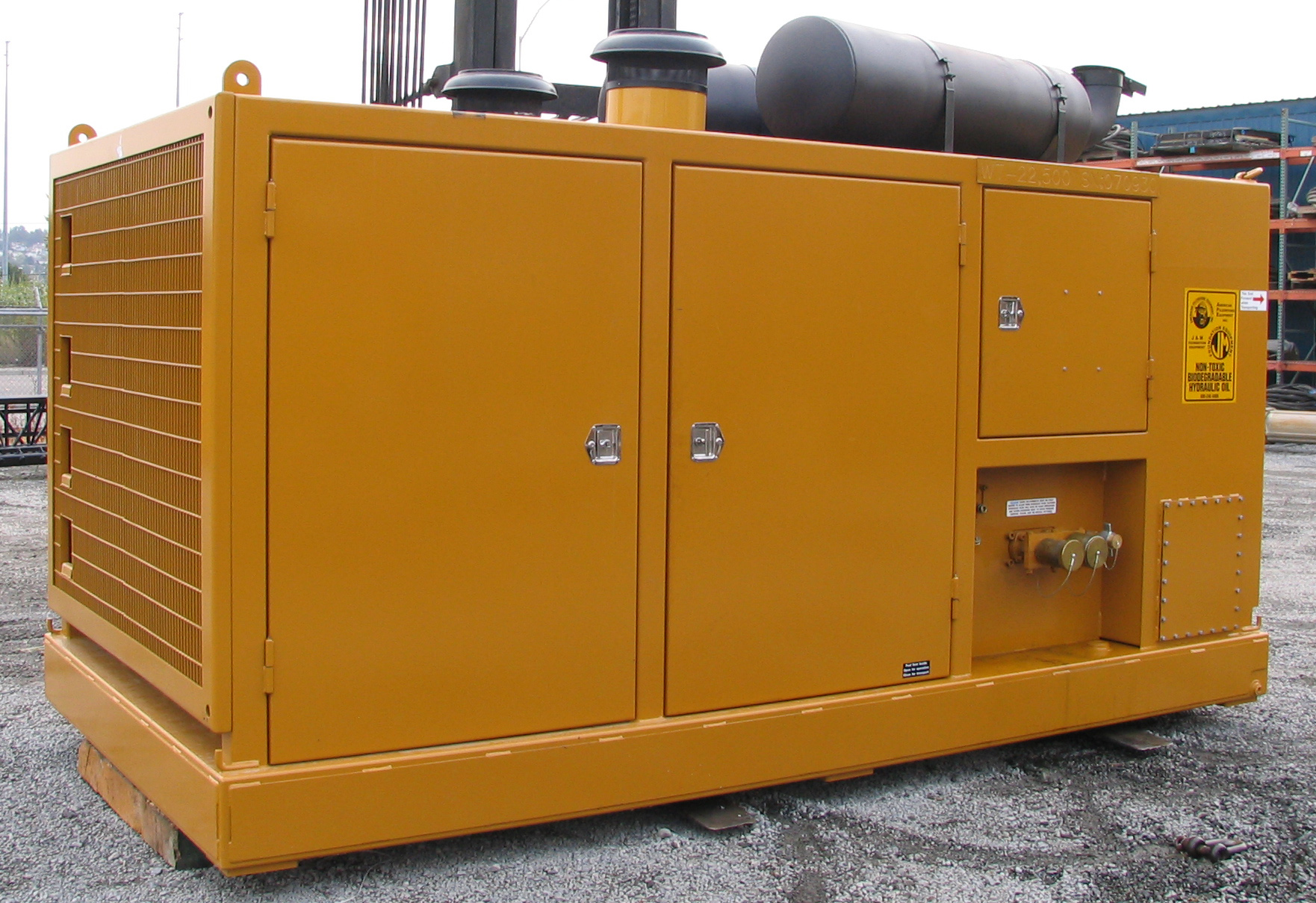

APE Model 950 Power Unit The Worlds Largest Provider of Foundation Construction Equipment

SPECIFICATIONS DATA Engine Type Caterpillar C 27 Tier IV Horse Power 950 HP (699 kW) Drive Pressure 0 - 4,500 psi (310 bar) Drive Flow 265 gpm (1,003 lpm) Clamp Pressure 4,800 psi (331 bar) Clamp Flow 10 gpm (36 lpm) Speed 1,800 rpm Weight 28,000 lbs (12,701 kg) Length 183 in (465 cm) Width 88 in (224 cm) Height 106 in (268 cm) Hydraulic Reservoir 670 gal (2,536 L) Fuel Capacity 170 gal (644 L)

Specifications may vary due to site conditions, specific hammer conditions or product set up.
Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
