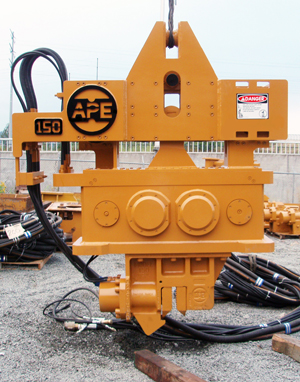

SPECIFICATIONS	DATA
Eccentric moment	2,600 in-lbs (30 kgm)
Hammer Drive force	445-1067 kN / 50-120 US Tons
Frequency (vpm)	0 to 1800
Amplitude	7-20 mm / 1/4-3/4 in
Pile Clamp Force	890kN / 100 US Tons
Line pull for extraction	711 kN / 80 US Tons
Hydraulic hoses length	30 m / 100 ft
Suspended weight*	3,855 kg / 8,500 lbs
Vibratory Hammer Length	223 cm / 88 in
Vibratory Hammer Width	36 cm / 14 in
Vibratory Hammer Height	180 cm / 71 in

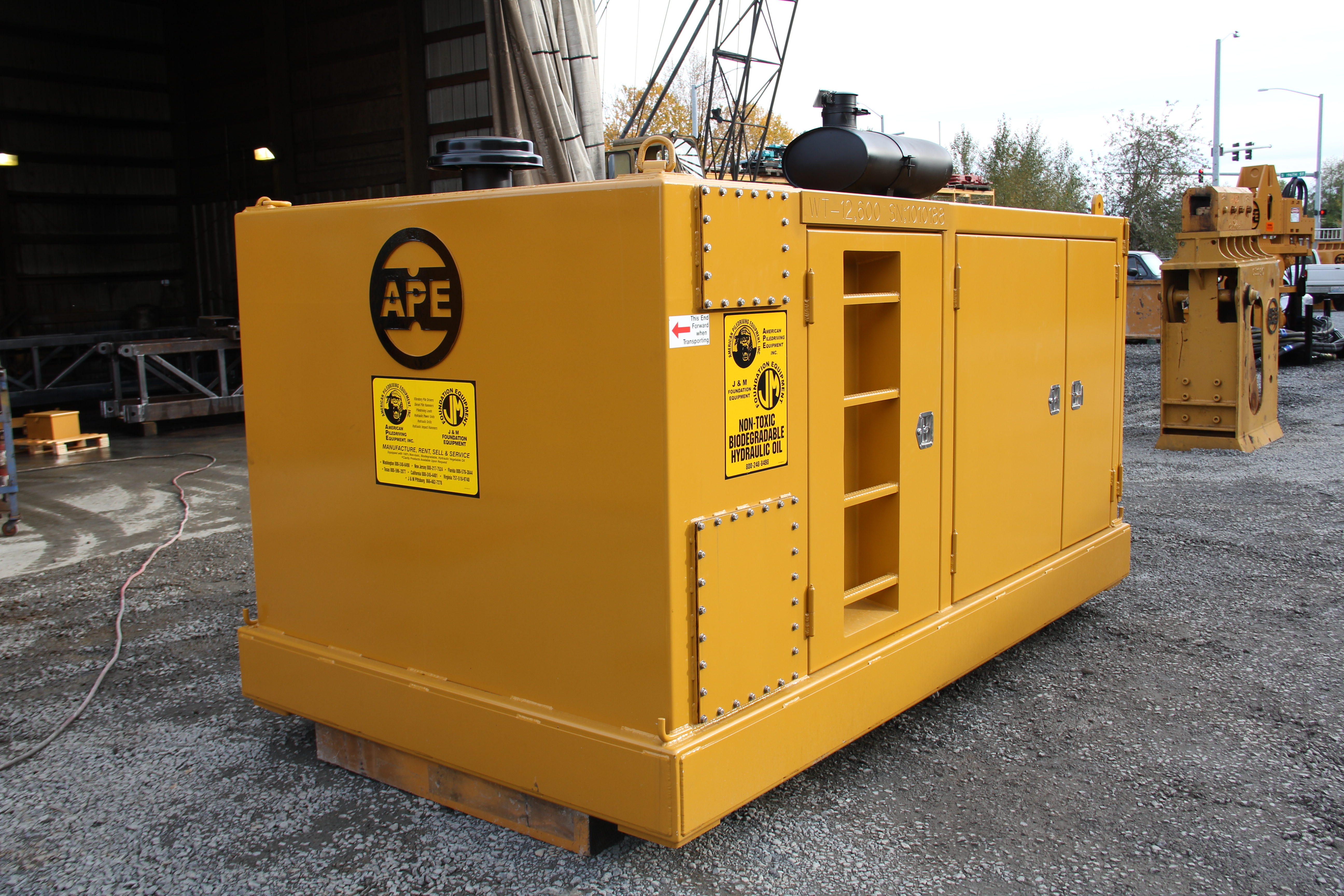

SPECIFICATIONS	DATA
Engine	Caterpillar C9 ACERT Tier III
Power (Max)	375 hp (280 kW)
Operating Speed (No Load)	800 to 2,100 rpm
Drive Pressure (Max)	4,800 psi (326 bar)
Drive Flow (Variable)	0 to 135 gpm (513 lpm)
Clamp Pressure (Max)	4,600 psi (312 bar)
Clamp Flow	10 gpm (41 lpm)
Weight	12,600 lbs (5,714 kg)
Length	110 in (279 cm)
Width	66 in (168 cm)
Height	68 in (172 cm)
Hydraulic Reservoir	350 gal (1.330 liters)
Fuel Tank	150 gal (570 liters)
