Wick Drain Specifications

APE Wick Drivers
Model 28 Model 100
 Model 200

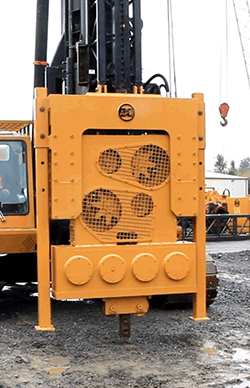

APE Model 200 Bottom-Drive™ Wick Drain
SPECIFICATIONS DATA
Static (Crowd) Force 247 kN / 27.8 US tons
Dynamic Force @ 1,650 vpm (1472 In-Lbs) 498 kN / 56 US tons
Combined Static/Dynamic Force 746kN / 83.8US tons
Operating Frequency 0 - 1,650 vpm
Suspended Weight 4889 kg / 10780 lbs
Maximum Pressure 380 bars / 5500 psi
Length 213 cm / 84in
Width 117.5 cm / 46.26 in
Whole Width 219.3 cm / 86.35 in
Height 304.8 cm / 120 in


Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
