American Piledriving Equipment Inc.

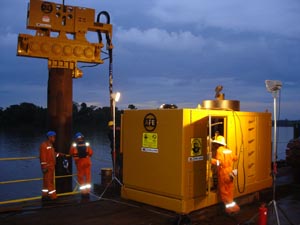

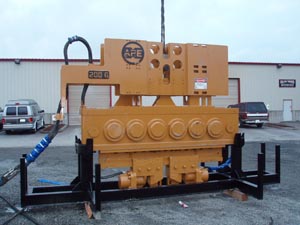

Model 200-6 Vibratory Driver/Extractor with Model 700 Power Unit

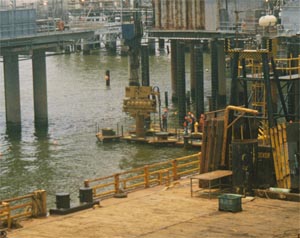

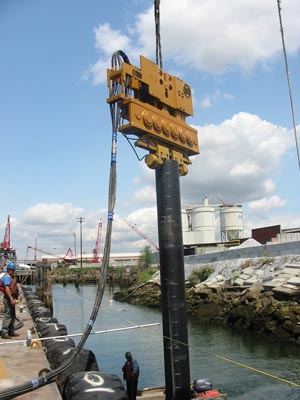

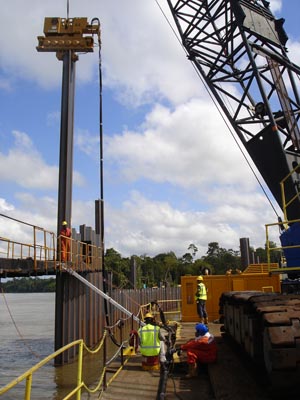

The APE Model 200, 200T & 200-6 is a variable frequency vibratory pile driver/extractor designed to drive and extract all types of piles including sheet, pipe, timber, concrete, H-beam, I-beam and steel plates. In addition, the vibrator can be used for soil compaction, installing well casings and installation of tiebacks and wick drains.
The Model 200, 200T, 200-6 is especially suited for driving or extracting piles that are near buildings or other structures. This is because the Model 200, 200T & 200-6 vibrates at higher frequencies and thus is less damaging to surrounding soils.
The suppressor housing of the 200, 200T & 200-6 APE Vibrator is a patented multistage system consisting of four large rubber elastomers and eight small elastomers. The large rubber elastomers (technically called the first stage) are used during all driving operations and light to medium extraction. The second stage is made up of eight small high capacity elastomers that do not engage until the crane has pulled approximately 50 tons (45 tonnes) of line pull. A large safety pin fitted inside a view slot indicates total line pull in tons. The safety pin travels down in the view slot during the extraction process. One inch of travel is equal to eight tons of line pull.

Vibro Specifications:

Eccentric moment	7,600 kg-cm (6,600 in-lbs)
Frequency (variable)	1600 vpm (1800 attaintable)
Driving force @ 1650 vpm	231 metric tons (255 US tons)
Amplitude	30 mm (1.17 in)
Maximum line pull	1,490 kN (167 US tons)
Suspended Weight (with universal clamp)	9,524 kg (21,000 lbs)
Length	318 cm (125 in)
Width throat	35 cm (14 in)
Width at widest point	43 cm (17 in)
Height (with 223 kN (30 ton) short suppressor & clamp	153 cm(60 in)
Height	238 cm (94 in)
Hydraulic hose length (standard)	46 meters (150 ft)
Hydraulic hose weight	680 kg (1,500 lbs)

Power Unit Specifications: (Model 700)
