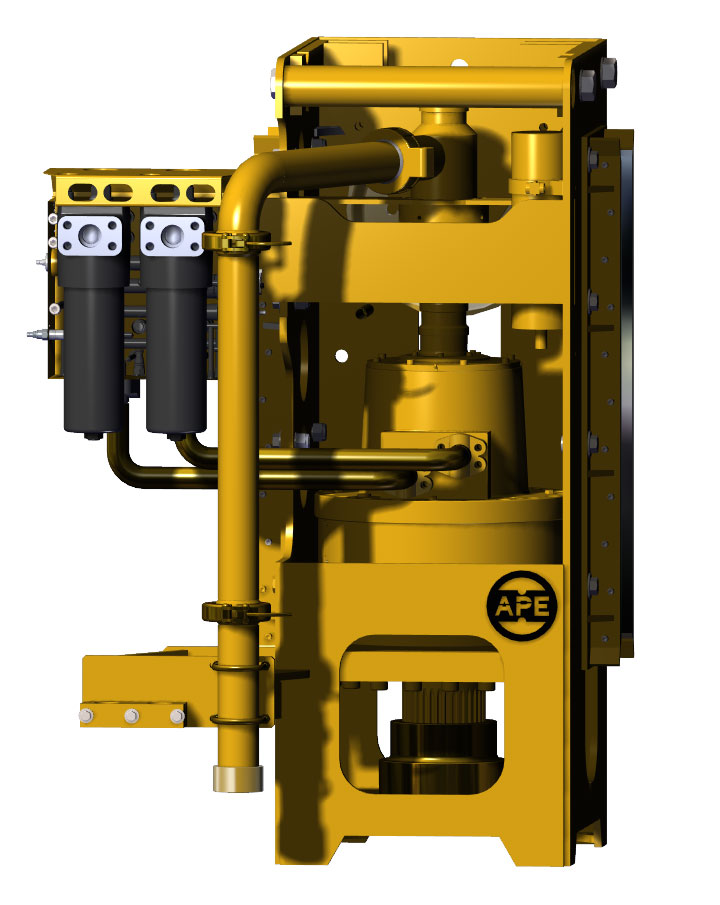

APE Model 50BB Top Drive Auger

Product Documents
Save PDF (Takes a Few Moments)
Operating Manuals and Documents
Specifications Standard Metric
Low Speed
High Torque
Torque 9,688 ft-lbs per 1000 psi 1,339.41 kgm per 69 bar
Max Pressure 5,800 psi 399.9 bar
Rotation Speed 36 rpm
Max Flow 120 gpm @ 3.33 gal / rev 454 lpm @ 12.61 lit / rev
Max Horse Power 406 hp 302.75 kWr
High Speed
Low Torque
Torque 4,844 ft-lbs per 1000 psi 669.71 kgm per 69 bar
Max Pressure 4,570 psi 315.09 bar
Rotation Speed 72 rpm
Max Flow 120 gpm @ 1.66 gal / rev 454 lpm @ 6.28 lit / rev
Max Horse Power 320 hp 238.62 kW
Crowd Force 150,000 lbs 68,038.86 kg
Suspended Weight 4,530 lbs 2,054.77 kg
Depth 25 in 635 cm
Width (Lead Section) 26 in 660.4 cm
Shipping Width (Overall) 48 in 1,219.2 cm
Height 61.5 in 1,562.1 cm
ID of Output Shaft 3 in 76.2 cm
ID of Rotary Joint 3 in 76.2 cm
Adapters 3 inch, 4 inch
Lead Adapters 8 x 26, 8 x 32 Custom Available
HORSEPOWER = FLOW(gpm) x PRESSURE(psi)
1714
FLOW(gpm) = HORSEPOWER x 1714
PRESSURE(psi)
PRESSURE(psi) = HORSEPOWER x 1714
FLOW(gpm)

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
