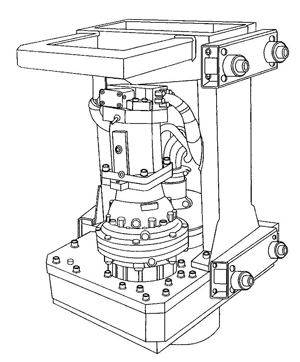

J&M Model 35AT Top Drive Auger

Product Documents
Save PDF (Takes a Few Moments)
Operating Manuals and Documents
Specifications Standard Metric
Low Speed
High Torque
Torque 6,364 ft-lbs per 1000 psi 879.85 kgm per 69 bar
Max Pressure 5,500 psi 379.21 bar
Rotation Speed 50 rpm
Max Flow 90 gpm @ 1.8 gal / rev 341 lpm @ 6.81 lit / rev
Max Horse Power 288 hp 214.76 kWr
High Speed
Low Torque
Torque 3,855 ft-lbs per 1000 psi 532.97 kgm per 69 bar
Max Pressure 5,500 psi 379.21 bar
Rotation Speed 75 rpm
Max Flow 90 gpm @ 1.2 gal / rev 341 lpm @ 4.54 lit / rev
Max Horse Power 288 hp 214.76 kW
Crowd Force 35,000 lbs 15,875.73 kg
Suspended Weight 35,000 lbs 15,875.73 kg
Depth 38 in 965.2 cm
Width (Lead Section) 26 in 660.4 cm
Shipping Width (Overall) in cm
Height 52 in 1,320.8 cm
ID of Output Shaft in cm
ID of Rotary Joint Consult Factory Consult Factory
Adapters API 3 inch, API 4 inch
Lead Adapters 8 x 26, 8 x 32
HORSEPOWER = FLOW(gpm) x PRESSURE(psi)
1714
FLOW(gpm) = HORSEPOWER x 1714
PRESSURE(psi)
PRESSURE(psi) = HORSEPOWER x 1714
FLOW(gpm)

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
