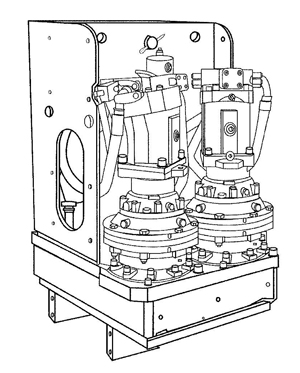

J&M Model 5050 Top Drive Auger
| Product Documents |
|---|
|
Save PDF (Takes a Few Moments) Operating Manuals and Documents |
| Specifications | Standard | Metric | |
|---|---|---|---|
| Low Speed High Torque |
Torque | 11,111 ft-lbs per 1000 psi | 1,536.15 kgm per 69 bar |
| Max Pressure | 4,500 psi | 310.26 bar | |
| Rotation Speed | 30 rpm | ||
| Max Flow | 85 gpm @ 3.5 gal / rev | 322 lpm @ 13.25 lit / rev | |
| Max Horse Power | 273 hp | 203.58 kWr | |
| High Speed Low Torque |
Torque | 5,556 ft-lbs per 1000 psi | 768.14 kgm per 69 bar |
| Max Pressure | 4,500 psi | 310.26 bar | |
| Rotation Speed | 75 rpm | ||
| Max Flow | 85 gpm @ 1.2 gal / rev | 322 lpm @ 4.54 lit / rev | |
| Max Horse Power | 223 hp | 166.29 kW | |
| Crowd Force | 80,000 lbs | 36,287.39 kg | |
| Suspended Weight | 5,000 lbs | 2,267.96 kg | |
| Depth | 38 in | 965.2 cm | |
| Width (Lead Section) | 30.5 in | 774.7 cm | |
| Shipping Width (Overall) | in | cm | |
| Height | 52 in | 1,320.8 cm | |
| ID of Output Shaft | 3 in | 76.2 cm | |
| ID of Rotary Joint | 3 in | 76.2 cm | |
| Adapters | API 3 inch, API 4 inch | ||
| Lead Adapters | 8 x 26, 8 x 32 | ||
| HORSEPOWER = | FLOW(gpm) x PRESSURE(psi) |
| 1714 |
| FLOW(gpm) = | HORSEPOWER x 1714 |
| PRESSURE(psi) |
| PRESSURE(psi) = | HORSEPOWER x 1714 |
| FLOW(gpm) |
Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
