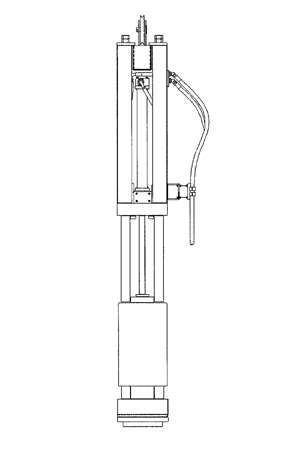

J&M Model 70 Hydraulic Impact Hammer

Product Documents
Save PDF (Takes a Few Moments)
Operating Manuals and Documents
Specifications Standard Metric
Ram Weight 7,000 lbs 3,175.15 kg
Rated Energy 21,000 ft-lbs 28.47 kNm
Stroke at Rated Energy 36 in 91.44 cm
Blows per Minute 48-80 min-max
Weight without Insert 13,400 lbs 6,078.14 kg
Height 185 in 469.9 cm
Standard Lead Size 8"x21"

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
