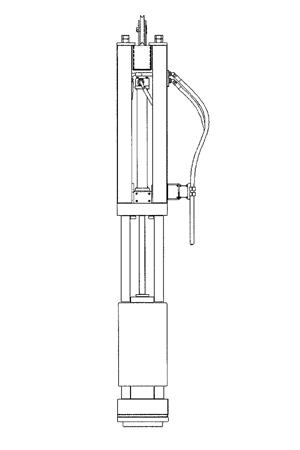

J&M Model 115 Hydraulic Impact Hammer

Product Documents
Save PDF (Takes a Few Moments)
Operating Manuals and Documents
Specifications Standard Metric
Ram Weight 11,500 lbs 5,216.31 kg
Rated Energy 46,000 ft-lbs 62.37 kNm
Stroke at Rated Energy 48 in 121.92 cm
Blows per Minute 48-80 min-max
Weight without Insert 17,000 lbs 7,711.07 kg
Height 237 in 601.98 cm
Standard Lead Size 8"x26"

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
