J&M Power Unit Specifications

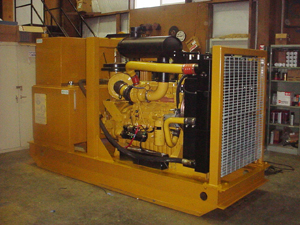

J&M Model 310 Power Unit

SPECIFICATIONS DATA
Engine Type Caterpillar C9 Tier III
Horse Power 375 HP (280 kW)
Drive Pressure 0 - 3,500 psi (241 bar)
Drive Flow 135 gpm (511 lpm)
Clamp Pressure Consult Factory
Clamp Flow Consult Factory
Engine Speed 2,200 rpm
Weight 9,100 lbs (4,128 kg)
Length 137 in (348 cm)
Width 60 in (152 cm)
Height (Including Muffler) 75 in (191 cm)
Hydraulic Reservoir 270 gal (1,022 L)
Fuel Capacity 110 gal (416 L)

Update Specifications in Grid View Here. Windows Authentification is required.




Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
