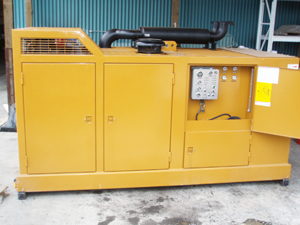

J&M Model 595 Power Unit
SPECIFICATIONS DATA
Engine Type Caterpillar C15 Tier III
Horse Power 595 HP (444 kW)
Drive Pressure 0 - 4,500 psi (310 bar)
Drive Flow 155 gpm (587 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 7 gpm (25 lpm)
Engine Speed 2,100 rpm
Weight 16,500 lbs (7,484 kg)
Length 158 in (401 cm)
Width 73 in (185 cm)
Height (Including Muffler) 95 in (241 cm)
Hydraulic Reservoir 385 gal (1,457 L)
Fuel Capacity 150 gal (568 L)

Update Specifications in Grid View Here. Windows Authentification is required.



Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
