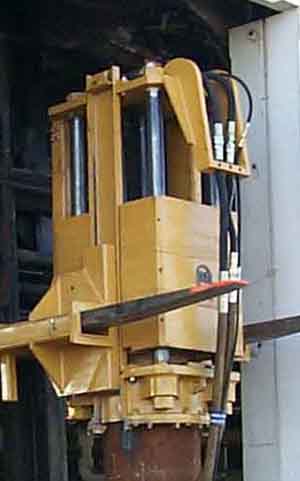

APE Model 4-2 Hydraulic Impact Hammer

Product Documents
Save PDF (Takes a Few Moments)
Operating Manuals and Documents
Specifications Standard Metric
Ram Weight 8,000 lbs 3,628.74 kg
Rated Energy 16,000 ft-lbs 21.69 kNm
Stroke at Rated Energy 24 in 60.96 cm
Blows per Minute 45-75 min-max
Weight without Insert 13,700 lbs 6,214.22 kg
Height 105 in 266.7 cm
Standard Lead Size 8"x26"

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
