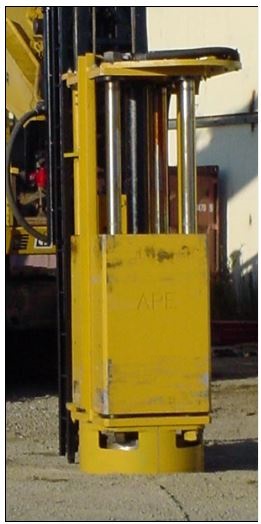

APE Model 7-3 Hydraulic Impact Hammer

Product Documents
Save PDF (Takes a Few Moments)
Operating Manuals and Documents
Specifications Standard Metric
Ram Weight 14,000 lbs 6,350.29 kg
Rated Energy 42,000 ft-lbs 56.94 kNm
Stroke at Rated Energy 36 in 91.44 cm
Blows per Minute 30-65 min-max
Weight without Insert 20,500 lbs 9,298.64 kg
Height 126 in 320.04 cm
Standard Lead Size 8"x26"

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
