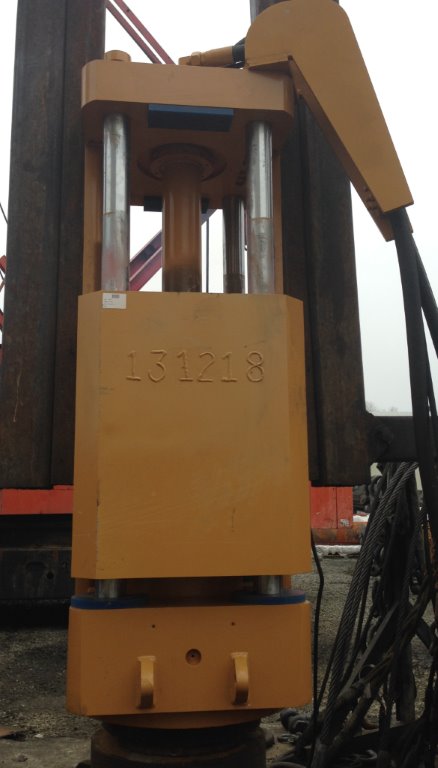

APE Model 5-2 Hydraulic Impact Hammer
| Product Documents |
|---|
|
Save PDF (Takes a Few Moments) Operating Manuals and Documents |
| Specifications | Standard | Metric |
|---|---|---|
| Ram Weight | 10,000 lbs | 4,535.92 kg |
| Rated Energy | 20,000 ft-lbs | 27.12 kNm |
| Stroke at Rated Energy | 24 in | 60.96 cm |
| Blows per Minute | 45-75 min-max | |
| Weight without Insert | 15,200 lbs | 6,894.6 kg |
| Height | 105 in | 266.7 cm |
| Standard Lead Size | 8"x26" | |
Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
