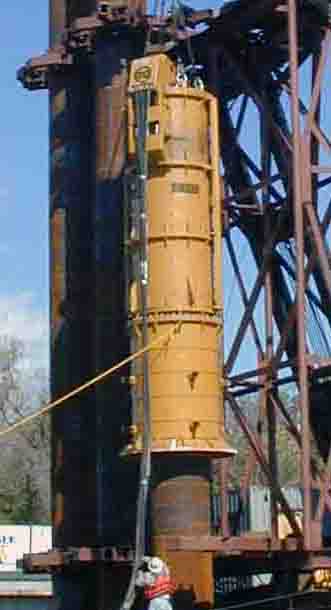

APE Model 40-4 Hydraulic Impact Hammer

Product Documents
Save PDF (Takes a Few Moments)
Operating Manuals and Documents
Specifications Standard Metric
Ram Weight 80,000 lbs 36,287.39 kg
Rated Energy 400,000 ft-lbs 542.33 kNm
Stroke at Rated Energy 60 in 152.4 cm
Blows per Minute 30-65 min-max
Weight without Insert Varies w/ Pile Size Varies w/ Pile Size
Height 390 in 990.6 cm
Standard Lead Size Offshore

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
