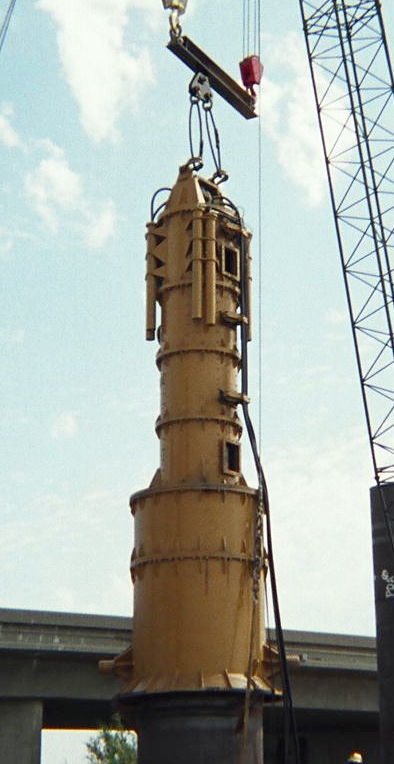

APE Model 60-4 Hydraulic Impact Hammer

Product Documents
Save PDF (Takes a Few Moments)
Operating Manuals and Documents
Specifications Standard Metric
Ram Weight 120,000 lbs 54,431.08 kg
Rated Energy 750,000 ft-lbs 1,016.86 kNm
Stroke at Rated Energy 72 in 182.88 cm
Blows per Minute 30-65 min-max
Weight without Insert Varies w/ Pile Size Varies w/ Pile Size
Height 480 in 1,219.2 cm
Standard Lead Size Offshore

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
