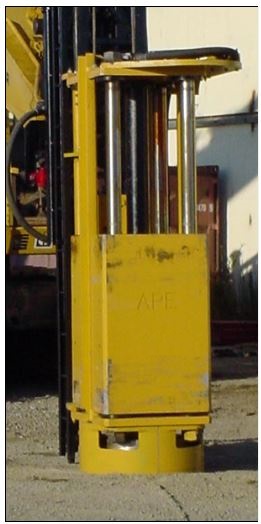

APE Model 7-4 Hydraulic Impact Hammer

Product Documents
Save PDF (Takes a Few Moments)
Operating Manuals and Documents
Specifications Standard Metric
Ram Weight 14,000 lbs 6,350.29 kg
Rated Energy 56,000 ft-lbs 75.93 kNm
Stroke at Rated Energy 48 in 121.92 cm
Blows per Minute 30-65 min-max
Weight without Insert 25,220 lbs 11,439.6 kg
Height 144 in 365.76 cm
Standard Lead Size 8"x26"

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
