APE Power Unit Specifications

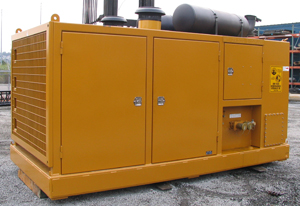

APE Model 1200 Power Unit

SPECIFICATIONS DATA
Engine Type Caterpillar C32 Tier II
Horse Power 1,200 HP (895 kW)
Drive Pressure 0 - 4,500 psi (310 bar)
Drive Flow 294 gpm (1,113 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (38 lpm)
Engine Speed 2,100 rpm
Weight 23,000 lbs (10,433 kg)
Length 169 in (428 cm)
Width 87 in (221 cm)
Height (Including Muffler) 103 in (262 cm)
Hydraulic Reservoir 760 gal (2,877 L)
Fuel Capacity 180 gal (681 L)

Update Specifications in Grid View Here. Windows Authentification is required.




Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
