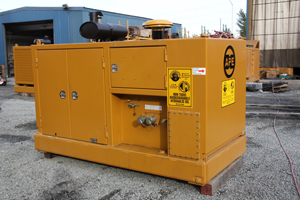

APE Model 275 Power Unit
SPECIFICATIONS DATA
Engine Type Caterpillar C7 Tier III
Horse Power 275 HP (205 kW)
Drive Pressure 0 - 4,800 psi (331 bar)
Drive Flow 74 gpm (280 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (38 lpm)
Engine Speed 2,100 rpm
Weight 11,500 lbs (5,216 kg)
Length 117 in (296 cm)
Width 59 in (149 cm)
Height (Including Muffler) 84 in (212 cm)
Hydraulic Reservoir 225 gal (852 L)
Fuel Capacity 80 gal (303 L)

Update Specifications in Grid View Here. Windows Authentification is required.



Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
