APE Power Unit Specifications

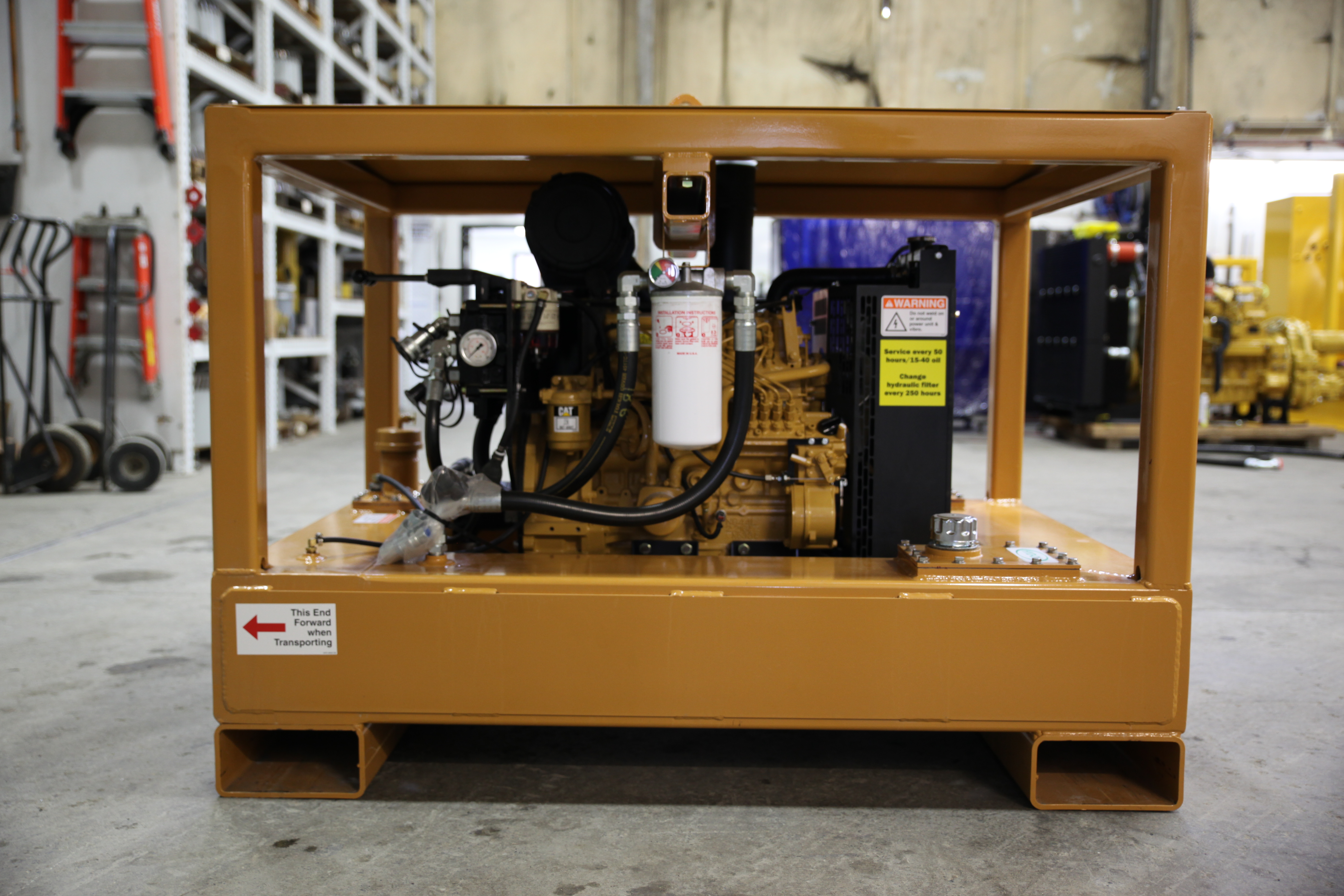

APE Model 50 Power Unit

SPECIFICATIONS DATA
Engine Type Caterpillar C2.2
Horse Power 50 HP (37 kW)
Drive Pressure 0 - 2,500 psi (172 bar)
Drive Flow 32 gpm (121 lpm)
Clamp Pressure Consult Factory
Clamp Flow Consult Factory
Engine Speed 3,000 rpm
Weight 1,500 lbs (680 kg)
Length 68 in (173 cm)
Width 40 in (102 cm)
Height (Including Muffler) 50 in (127 cm)
Hydraulic Reservoir 55 gal (208 L)
Fuel Capacity 24 gal (91 L)

Update Specifications in Grid View Here. Windows Authentification is required.




Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
