APE Power Unit Specifications

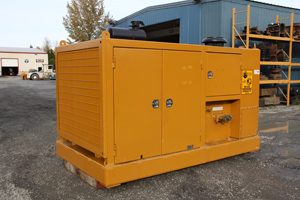

APE Model 475 Power Unit

SPECIFICATIONS DATA
Engine Type Caterpillar C13 Tier III
Horse Power 475 HP (354 kW)
Drive Pressure 0 - 4,500 psi (310 bar)
Drive Flow 147 gpm (556 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (38 lpm)
Engine Speed 2,100 rpm
Weight 14,750 lbs (6,690 kg)
Length 128 in (324 cm)
Width 74 in (187 cm)
Height (Including Muffler) 92 in (234 cm)
Hydraulic Reservoir 305 gal (1,155 L)
Fuel Capacity 117 gal (443 L)

Update Specifications in Grid View Here. Windows Authentification is required.




Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
