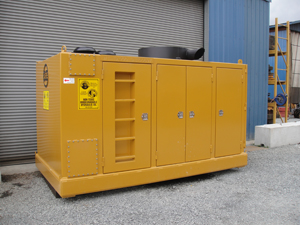

APE Model 800 Power Unit
SPECIFICATIONS DATA
Engine Type Caterpillar C18 Tier IV F
Horse Power 800 HP (597 kW)
Drive Pressure 0 - 4,800 psi (331 bar)
Drive Flow 220 gpm (833 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (38 lpm)
Engine Speed 1,800 rpm
Weight 23,300 lbs (10,569 kg)
Length 186 in (472 cm)
Width 96 in (244 cm)
Height (Including Muffler) 90 in (229 cm)
Hydraulic Reservoir 660 gal (2,498 L)
Fuel Capacity 178 gal (674 L)

Update Specifications in Grid View Here. Windows Authentification is required.



Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
