APE Vibratory Driver Extractor Specifications

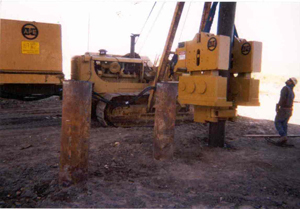

APE Model 100 Tandem Vibratory Driver Extractor

SPECIFICATIONS DATA
Eccentric Moment 4,400 in-lbs (50.69 kgm)
Drive Force 170 tons (1,513 kN)
Frequency Maximum (VPM) 0 - 1,650 vpm
Max Line Pull 186 tons (1,655 kN)
Bare Hammer Weight w/o Clamp Consult Factory
Throat Width Consult Factory
Length Consult Factory
Height w/o Clamp Consult Factory

APE Model 595 Power Unit

SPECIFICATIONS DATA
Engine Type Caterpillar C15 Tier III
Horse Power 595 HP (438 kW)
Drive Pressure 0 - 4,500 psi (310 bar)
Drive Flow 188 gpm (712 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (3 lpm)
Engine Speed 2,100 rpm
Weight 19,500 lbs (8,845 kg)
Length 152 in (385 cm)
Width 82 in (208 cm)
Height 94 in (239 cm)
Hydraulic Reservoir 575 gal (2,177 L)
Fuel Capacity 160 gal (606 L)



Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
