APE Vibratory Driver Extractor Specifications

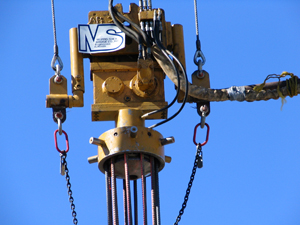

APE Model 3 Vibratory Driver Extractor

Eccentric Moment 30 in-lbs (.35 kgm)
Drive Force 2 tons (18 kN)
Frequency Maximum (VPM) 0 - 2,200 vpm
Max Line Pull 6 tons (53 kN)
Bare Hammer Weight w/o Clamp 450 lbs (204 kg)
Throat Width 6.00 in (15 cm)
Length 27.63 in (70 cm)
Height w/o Clamp 38.00 in (97 cm)

APE Model 10 Power Unit

Engine Type Kohler
Horse Power 14 HP (10 kW)
Drive Pressure 0 - 3,500 psi (241 bar)
Drive Flow 6 gpm (23 lpm)
Clamp Pressure 3,500 psi (241 bar)
Clamp Flow 6 gpm (2 lpm)
Engine Speed 3,000 rpm
Weight 275 lbs (125 kg)
Length 24 in (61 cm)
Width 32 in (81 cm)
Height 42 in (107 cm)
Hydraulic Reservoir 20 gal (76 L)
Fuel Capacity Consult Factory

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
