APE Vibratory Driver Extractor Specifications

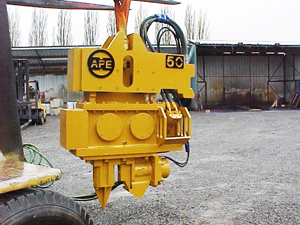

APE Model 50 Vibratory Driver Extractor

SPECIFICATIONS DATA
Eccentric Moment 1,300 in-lbs (14.98 kgm)
Drive Force 50 tons (447 kN)
Frequency Maximum (VPM) 0 - 1,650 vpm
Max Line Pull 56 tons (498 kN)
Bare Hammer Weight w/o Clamp 4,550 lbs (2,064 kg)
Throat Width 14.63 in (37 cm)
Length 57.25 in (145 cm)
Height w/o Clamp 53.50 in (136 cm)

APE Model 275 Power Unit

SPECIFICATIONS DATA
Engine Type Caterpillar C7 Tier III
Horse Power 275 HP (202 kW)
Drive Pressure 0 - 4,800 psi (331 bar)
Drive Flow 74 gpm (280 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (3 lpm)
Engine Speed 2,100 rpm
Weight 11,500 lbs (5,216 kg)
Length 117 in (296 cm)
Width 59 in (149 cm)
Height 84 in (212 cm)
Hydraulic Reservoir 225 gal (852 L)
Fuel Capacity 80 gal (303 L)



Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
