APE Vibratory Driver Extractor Specifications

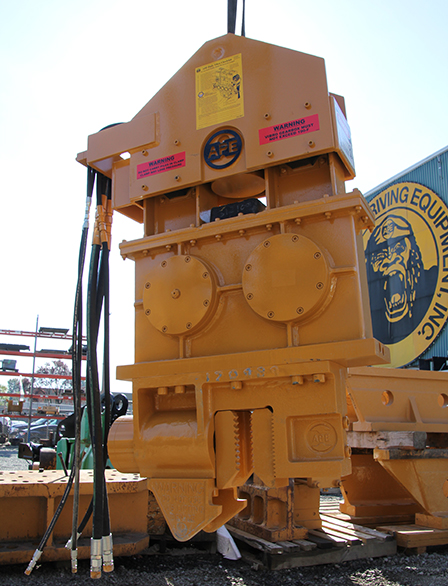

APE Model 15 Vibratory Driver Extractor

Eccentric Moment 600 in-lbs (6.91 kgm)
Drive Force 23 tons (206 kN)
Frequency Maximum (VPM) 0 - 1,650 vpm
Max Line Pull 9 tons (80 kN)
Bare Hammer Weight w/o Clamp 2,000 lbs (907 kg)
Throat Width 9.00 in (23 cm)
Length 36.50 in (93 cm)
Height w/o Clamp 49.75 in (126 cm)

APE Model 127 Power Unit

Engine Type Caterpillar C4.4Tier IV
Horse Power 127 HP (93 kW)
Drive Pressure 0 - 2,500 psi (172 bar)
Drive Flow 60 gpm (227 lpm)
Clamp Pressure Consult Factory
Clamp Flow Consult Factory
Engine Speed 2,200 rpm
Weight 4,750 lbs (2,155 kg)
Length 99 in (251 cm)
Width 45 in (114 cm)
Height 66 in (168 cm)
Hydraulic Reservoir 140 gal (530 L)
Fuel Capacity 75 gal (284 L)

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
