APE Vibratory Driver Extractor Specifications

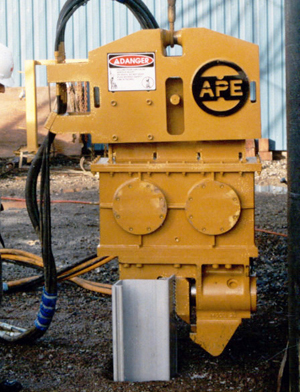

APE Model 20 Vibratory Driver Extractor

Eccentric Moment 900 in-lbs (10.37 kgm)
Drive Force 35 tons (310 kN)
Frequency Maximum (VPM) 0 - 1,650 vpm
Max Line Pull 28 tons (249 kN)
Bare Hammer Weight w/o Clamp 2,510 lbs (1,139 kg)
Throat Width 12.00 in (30 cm)
Length 36.50 in (93 cm)
Height w/o Clamp 45.00 in (114 cm)

APE Model 275 Power Unit

Engine Type Caterpillar C7 Tier III
Horse Power 275 HP (202 kW)
Drive Pressure 0 - 4,800 psi (331 bar)
Drive Flow 74 gpm (280 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (3 lpm)
Engine Speed 2,100 rpm
Weight 11,500 lbs (5,216 kg)
Length 117 in (296 cm)
Width 59 in (149 cm)
Height 84 in (212 cm)
Hydraulic Reservoir 225 gal (852 L)
Fuel Capacity 80 gal (303 L)

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
