APE Vibratory Driver Extractor Specifications

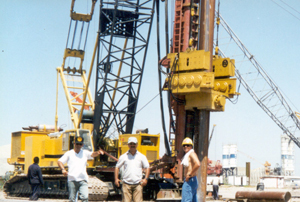

APE Model 200 Tandem Vibratory Driver Extractor

SPECIFICATIONS DATA
Eccentric Moment 8,800 in-lbs (101.39 kgm)
Drive Force 340 tons (3,027 kN)
Frequency Maximum (VPM) 0 - 1,650 vpm
Max Line Pull 266 tons (2,366 kN)
Bare Hammer Weight w/o Clamp Consult Factory
Throat Width Consult Factory
Length Consult Factory
Height w/o Clamp Consult Factory

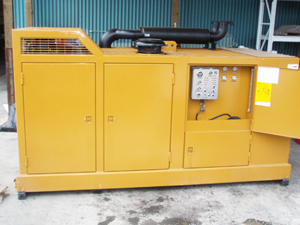

APE Model 595T Power Unit

SPECIFICATIONS DATA
Engine Type Caterpillar C15 Tier II x2
Horse Power 1,190 HP (875 kW)
Drive Pressure 0 - 4,500 psi (310 bar)
Drive Flow 376 gpm (1,423 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (3 lpm)
Engine Speed 2,100 rpm
Weight 39,000 lbs (17,690 kg)
Length 152 in (386 cm)
Width 82 in (208 cm)
Height 94 in (239 cm)
Hydraulic Reservoir 1,150 gal (4,353 L)
Fuel Capacity 320 gal (1,211 L)



Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
