APE Vibratory Driver Extractor Specifications

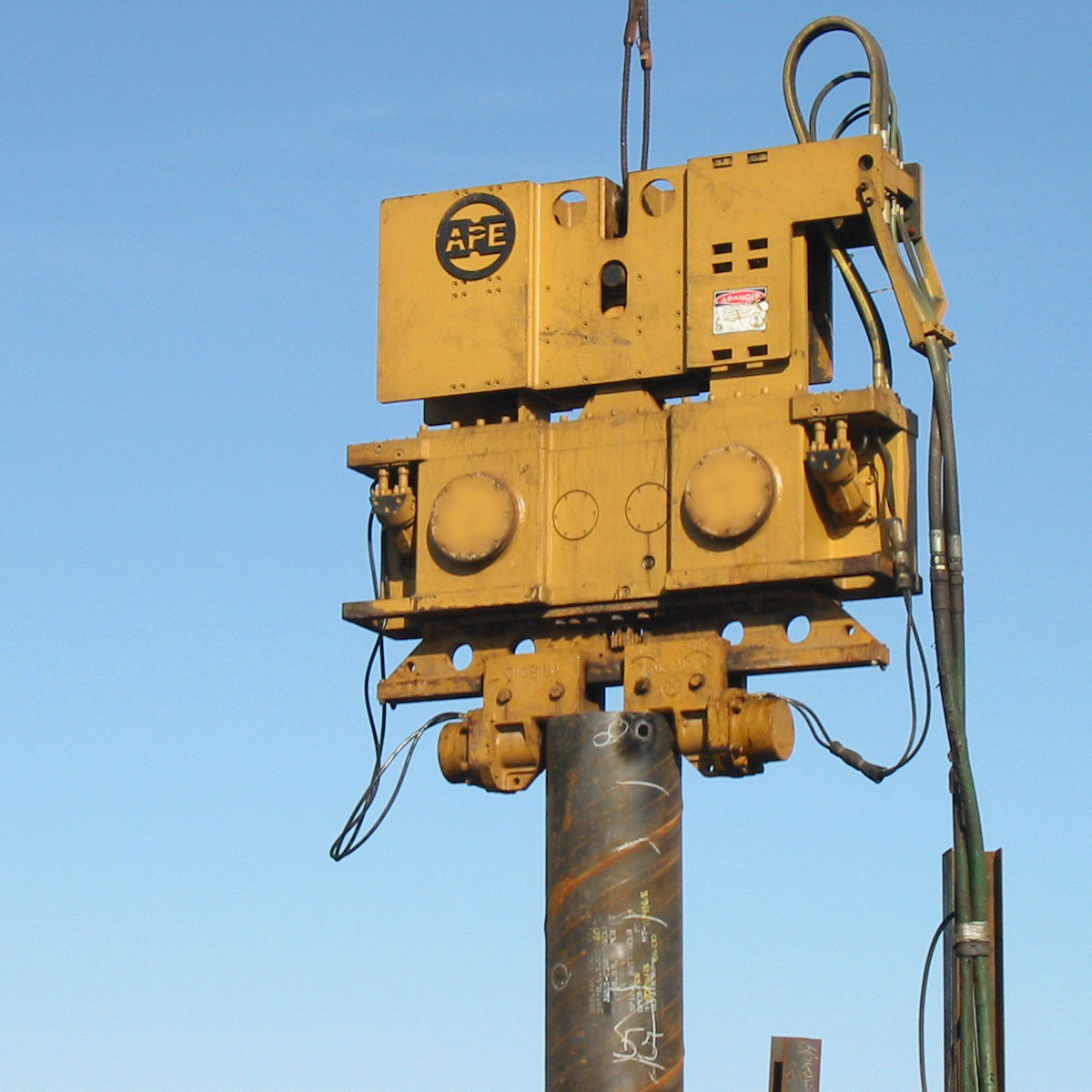

APE Model 300 Vibratory Driver Extractor

SPECIFICATIONS DATA
Eccentric Moment 5,750 in-lbs (66.25 kgm)
Drive Force 160 tons (1,424 kN)
Frequency Maximum (VPM) 0 - 1,400 vpm
Max Line Pull 150 tons (1,334 kN)
Bare Hammer Weight w/o Clamp 19,500 lbs (8,845 kg)
Throat Width 14.00 in (36 cm)
Length 110.00 in (279 cm)
Height w/o Clamp 106.00 in (269 cm)

APE Model 765 Power Unit

SPECIFICATIONS DATA
Engine Type Caterpillar C18 Tier II
Horse Power 765 HP (563 kW)
Drive Pressure 0 - 4,500 psi (310 bar)
Drive Flow 220 gpm (833 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (3 lpm)
Engine Speed 2,100 rpm
Weight 20,000 lbs (9,072 kg)
Length 152 in (385 cm)
Width 82 in (208 cm)
Height 94 in (239 cm)
Hydraulic Reservoir 450 gal (1,703 L)
Fuel Capacity 150 gal (568 L)



Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
