APE Vibratory Driver Extractor Specifications

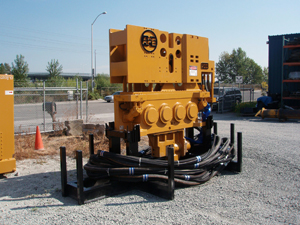

APE Model 200T Vibratory Driver Extractor

SPECIFICATIONS DATA
Eccentric Moment 5,200 in-lbs (59.91 kgm)
Drive Force 201 tons (1,788 kN)
Frequency Maximum (VPM) 0 - 1,650 vpm
Max Line Pull 133 tons (1,183 kN)
Bare Hammer Weight w/o Clamp 12,960 lbs (5,879 kg)
Throat Width 14.75 in (37 cm)
Length 104.00 in (264 cm)
Height w/o Clamp 65.60 in (167 cm)

APE Model 755 T4 Power Unit

SPECIFICATIONS DATA
Engine Type Caterpillar C18 Tier IV F
Horse Power 755 HP (555 kW)
Drive Pressure 0 - 4,800 psi (331 bar)
Drive Flow 220 gpm (833 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (3 lpm)
Engine Speed 1,800 rpm
Weight 25,000 lbs (11,340 kg)
Length 186 in (472 cm)
Width 96 in (244 cm)
Height 90 in (229 cm)
Hydraulic Reservoir 660 gal (2,498 L)
Fuel Capacity 178 gal (674 L)



Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
