APE Vibratory Driver Extractor Specifications

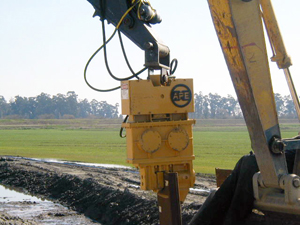

APE Model 20 Excavator Vibratory Driver Extractor

SPECIFICATIONS DATA
Eccentric Moment 900 in-lbs (10.37 kgm)
Drive Force 35 tons (310 kN)
Frequency Maximum (VPM) 0 - 1,650 vpm
Max Line Pull 18 tons (160 kN)
Bare Hammer Weight w/o Clamp 2,540 lbs (1,152 kg)
Throat Width 12.38 in (31 cm)
Length 36.50 in (93 cm)
Height w/o Clamp 47.88 in (122 cm)

There is not a power unit recommended with this specific hammer. Excavator mounted units are normally powered by hydraulics on the excavator.
Please consult the factory (800) 248-8498 or visit our Locations page for the phone number of the APE branch closest to you.



Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
