APE Vibratory Driver Extractor Specifications

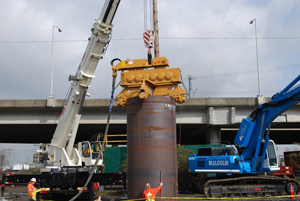

APE Model 200-6 Low-Headroom Vibratory Driver Extractor

Eccentric Moment 6,600 in-lbs (76.04 kgm)
Drive Force 255 tons (2,270 kN)
Frequency Maximum (VPM) 0 - 1,650 vpm
Max Line Pull Consult Factory
Bare Hammer Weight w/o Clamp Consult Factory
Throat Width Consult Factory
Length Consult Factory
Height w/o Clamp Consult Factory

APE Model 765 Power Unit

Engine Type Caterpillar C18 Tier II
Horse Power 765 HP (563 kW)
Drive Pressure 0 - 4,500 psi (310 bar)
Drive Flow 220 gpm (833 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (3 lpm)
Engine Speed 2,100 rpm
Weight 20,000 lbs (9,072 kg)
Length 152 in (385 cm)
Width 82 in (208 cm)
Height 94 in (239 cm)
Hydraulic Reservoir 450 gal (1,703 L)
Fuel Capacity 150 gal (568 L)

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
