APE Vibratory Driver Extractor Specifications

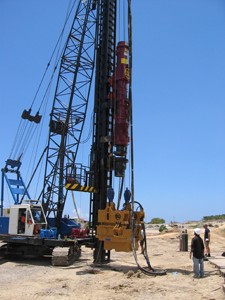

APE Model 50 Tandem Vibratory Driver Extractor

SPECIFICATIONS DATA
Eccentric Moment 2,600 in-lbs (29.96 kgm)
Drive Force 101 tons (894 kN)
Frequency Maximum (VPM) 0 - 1,650 vpm
Max Line Pull 112 tons (996 kN)
Bare Hammer Weight w/o Clamp Consult Factory
Throat Width Consult Factory
Length Consult Factory
Height w/o Clamp Consult Factory

APE Model 475 Power Unit

SPECIFICATIONS DATA
Engine Type Caterpillar C13 Tier III
Horse Power 475 HP (349 kW)
Drive Pressure 0 - 4,500 psi (310 bar)
Drive Flow 147 gpm (556 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (3 lpm)
Engine Speed 2,100 rpm
Weight 14,750 lbs (6,690 kg)
Length 128 in (324 cm)
Width 74 in (187 cm)
Height 92 in (234 cm)
Hydraulic Reservoir 305 gal (1,155 L)
Fuel Capacity 117 gal (443 L)



Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
