APE Vibratory Driver Extractor Specifications

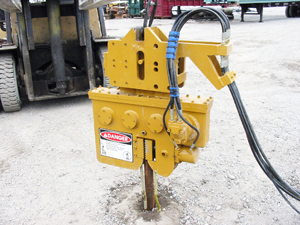

APE Model 6 Vibratory Driver Extractor

SPECIFICATIONS DATA
Eccentric Moment 60 in-lbs (.69 kgm)
Drive Force 4 tons (37 kN)
Frequency Maximum (VPM) 0 - 2,200 vpm
Max Line Pull 6 tons (53 kN)
Bare Hammer Weight w/o Clamp 720 lbs (327 kg)
Throat Width 6.00 in (15 cm)
Length 36.25 in (92 cm)
Height w/o Clamp 38.00 in (97 cm)

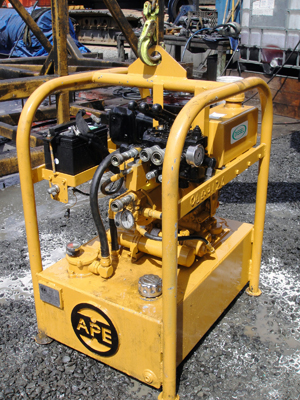

There is not a power unit recommended with this specific hammer. Excavator mounted units are normally powered by hydraulics on the excavator.
Please consult the factory (800) 248-8498 or visit our Locations page for the phone number of the APE branch closest to you.



Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
