APE Vibratory Driver Extractor Specifications

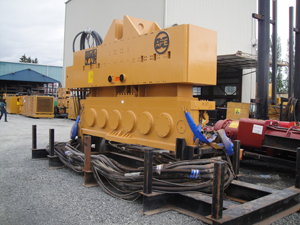

APE Model 600 Vibratory Driver Extractor

Eccentric Moment 17,200 in-lbs (198.17 kgm)
Drive Force 445 tons (3,960 kN)
Frequency Maximum (VPM) 0 - 1,350 vpm
Max Line Pull 351 tons (3,123 kN)
Bare Hammer Weight w/o Clamp 48,500 lbs (21,999 kg)
Throat Width 37.00 in (94 cm)
Length 180.00 in (457 cm)
Height w/o Clamp 104.50 in (265 cm)

APE Model 1200 Power Unit

Engine Type Caterpillar C32 Tier II
Horse Power 1,200 HP (883 kW)
Drive Pressure 0 - 4,500 psi (310 bar)
Drive Flow 294 gpm (1,113 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (3 lpm)
Engine Speed 2,100 rpm
Weight 23,000 lbs (10,433 kg)
Length 169 in (428 cm)
Width 87 in (221 cm)
Height 103 in (262 cm)
Hydraulic Reservoir 760 gal (2,877 L)
Fuel Capacity 180 gal (681 L)

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
