APE Vibratory Driver Extractor Specifications

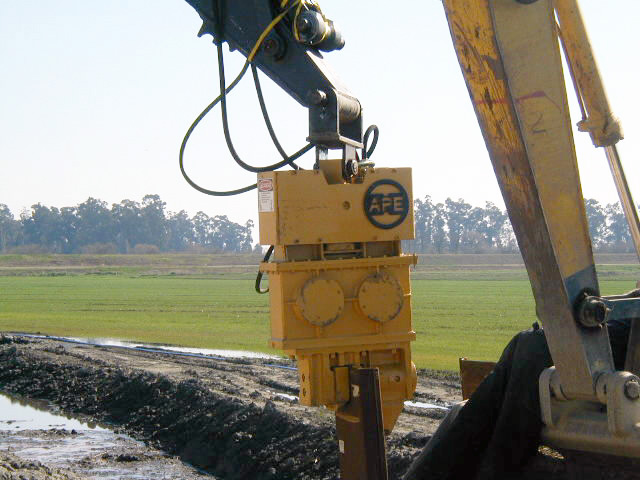

APE Model 15 Excavator Vibratory Driver Extractor

Eccentric Moment 600 in-lbs (6.91 kgm)
Drive Force 23 tons (206 kN)
Frequency Maximum (VPM) 0 - 1,650 vpm
Max Line Pull 9 tons (80 kN)
Bare Hammer Weight w/o Clamp 1,690 lbs (767 kg)
Throat Width 9.63 in (24 cm)
Length 36.50 in (93 cm)
Height w/o Clamp 40.13 in (102 cm)

There is not a power unit recommended with this specific hammer. Excavator mounted units are normally powered by hydraulics on the excavator.
Please consult the factory (800) 248-8498 or visit our Locations page for the phone number of the APE branch closest to you.

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
