APE Vibratory Driver Extractor Specifications

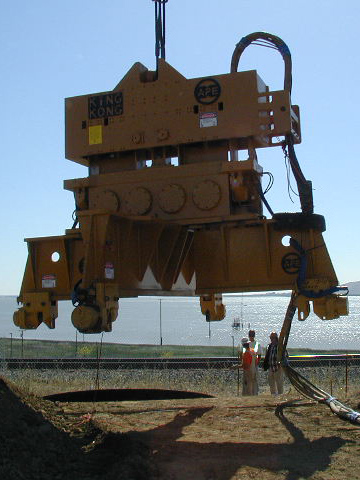

APE Model 400 Vibratory Driver Extractor

Eccentric Moment 11,500 in-lbs (132.49 kgm)
Drive Force 298 tons (2,648 kN)
Frequency Maximum (VPM) 0 - 1,350 vpm
Max Line Pull 234 tons (2,082 kN)
Bare Hammer Weight w/o Clamp 36,000 lbs (16,329 kg)
Throat Width 33.00 in (84 cm)
Length 141.00 in (358 cm)
Height w/o Clamp 88.50 in (225 cm)

APE Model 1050 Power Unit

Engine Type Caterpillar C27 Tier II
Horse Power 1,050 HP (772 kW)
Drive Pressure 0 - 4,500 psi (310 bar)
Drive Flow 278 gpm (1,052 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (3 lpm)
Engine Speed 2,100 rpm
Weight 22,500 lbs (10,206 kg)
Length 186 in (472 cm)
Width 87 in (221 cm)
Height 103 in (260 cm)
Hydraulic Reservoir 485 gal (1,836 L)
Fuel Capacity 175 gal (662 L)

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
