APE Vibratory Driver Extractor Specifications

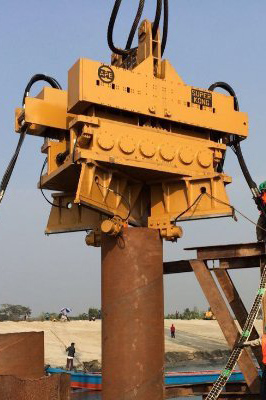

APE Model 600 Tandem Vibratory Driver Extractor

Eccentric Moment 34,400 in-lbs (396.33 kgm)
Drive Force 890 tons (7,920 kN)
Frequency Maximum (VPM) 0 - 1,350 vpm
Max Line Pull 702 tons (6,245 kN)
Bare Hammer Weight w/o Clamp Consult Factory
Throat Width Consult Factory
Length Consult Factory
Height w/o Clamp Consult Factory

APE Model 1200T Power Unit

Engine Type Caterpillar C32 Tier II x2
Horse Power 2,400 HP (1,765 kW)
Drive Pressure 0 - 4,500 psi (310 bar)
Drive Flow 588 gpm (2,226 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (3 lpm)
Engine Speed 2,100 rpm
Weight 46,000 lbs (20,865 kg)
Length 169 in (429 cm)
Width 87 in (221 cm)
Height 103 in (262 cm)
Hydraulic Reservoir 1,520 gal (5,754 L)
Fuel Capacity 360 gal (1,363 L)

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
