APE Vibratory Driver Extractor Specifications

APE Model 200-6 Vibratory Driver Extractor

SPECIFICATIONS DATA
Eccentric Moment 6,600 in-lbs (76.04 kgm)
Drive Force 255 tons (2,270 kN)
Frequency Maximum (VPM) 0 - 1,650 vpm
Max Line Pull 185 tons (1,646 kN)
Bare Hammer Weight w/o Clamp 18,900 lbs (8,573 kg)
Throat Width 14.75 in (37 cm)
Length 140.00 in (356 cm)
Height w/o Clamp 75.00 in (191 cm)

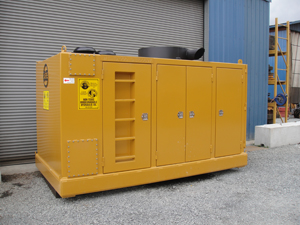

APE Model 765 Power Unit

SPECIFICATIONS DATA
Engine Type Caterpillar C18 Tier II
Horse Power 765 HP (563 kW)
Drive Pressure 0 - 4,500 psi (310 bar)
Drive Flow 220 gpm (833 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (3 lpm)
Engine Speed 2,100 rpm
Weight 20,000 lbs (9,072 kg)
Length 152 in (385 cm)
Width 82 in (208 cm)
Height 94 in (239 cm)
Hydraulic Reservoir 450 gal (1,703 L)
Fuel Capacity 150 gal (568 L)



Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
