APE Vibratory Driver Extractor Specifications

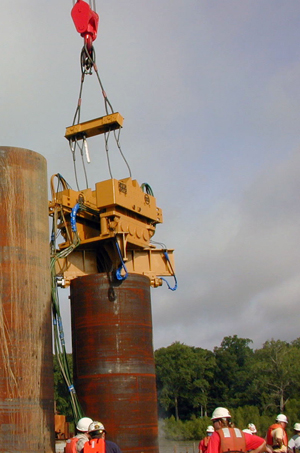

APE Model 400 Tandem Vibratory Driver Extractor

SPECIFICATIONS DATA
Eccentric Moment 23,000 in-lbs (264.99 kgm)
Drive Force 595 tons (5,295 kN)
Frequency Maximum (VPM) 0 - 1,350 vpm
Max Line Pull 468 tons (4,164 kN)
Bare Hammer Weight w/o Clamp Consult Factory
Throat Width Consult Factory
Length Consult Factory
Height w/o Clamp Consult Factory

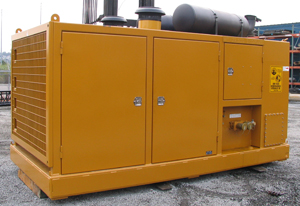

APE Model 1050T Power Unit

SPECIFICATIONS DATA
Engine Type Caterpillar C27 Tier II x2
Horse Power 2,100 HP (1,545 kW)
Drive Pressure 0 - 4,500 psi (310 bar)
Drive Flow 556 gpm (2,105 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (3 lpm)
Engine Speed 2,100 rpm
Weight 45,000 lbs (20,412 kg)
Length 186 in (472 cm)
Width 87 in (221 cm)
Height 103 in (262 cm)
Hydraulic Reservoir 970 gal (3,672 L)
Fuel Capacity 350 gal (1,325 L)



Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
