APE Vibratory Driver Extractor Specifications

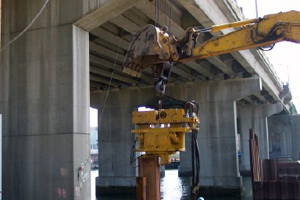

APE Model 150 Low-Headroom Vibratory Driver Extractor

Eccentric Moment 2,200 in-lbs (25.35 kgm)
Drive Force 85 tons (757 kN)
Frequency Maximum (VPM) 0 - 1,650 vpm
Max Line Pull Consult Factory
Bare Hammer Weight w/o Clamp Consult Factory
Throat Width Consult Factory
Length Consult Factory
Height w/o Clamp Consult Factory

APE Model 375 Power Unit

Engine Type Caterpillar C9 Tier III
Horse Power 375 HP (276 kW)
Drive Pressure 0 - 4,500 psi (310 bar)
Drive Flow 120 gpm (454 lpm)
Clamp Pressure 4,800 psi (331 bar)
Clamp Flow 10 gpm (3 lpm)
Engine Speed 2,100 rpm
Weight 12,600 lbs (5,715 kg)
Length 137 in (347 cm)
Width 77 in (195 cm)
Height 82 in (208 cm)
Hydraulic Reservoir 300 gal (1,136 L)
Fuel Capacity 140 gal (530 L)

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
